Kubernetes Cluster Design

CozyFex included in kubernetes k8s orchestration cluster design

2021-06-01 985 words 5 minutes

Contents

Kubernetes Cluster Install Tools

Considerations

Purpose

Education

Minikube
Single node cluster with kubeadm/GCP/AWS

Development & Testing

Multi-Node Cluster with a Single Master and Multiple Works
Setup using kubeadm tool or quick provision on GCP or AWS or AKS

Hosting Production Applications

High Availability Multi-Node Cluster with multiple master nodes.
kubeadm or kOps on GCP or AWS or other supported platforms.
Upto 5,000 nodes
Upto 150,000 PODs in the cluster
Upto 300,000 total containers
Upto 100 PODs per node

Nodes	GCP Type	GCP Spec	AWS Type	AWS Spec
1~5	n1-standard-1	1 vCPU 3.75 GB	m3.medium	1 vCPU 3.75 GB
6~10	n1-standard-2	2 vCPU 7.5 GB	m3.large	2 vCPU 7.5 GB
11~100	n1-standard-4	4 vCPU 15 GB	m3.xlarge	4 vCPU 15 GB
101~250	n1-standard-8	8 vCPU 30 GB	m3.2xlarge	8 vCPU 30 GB
251~500	n1-standard-16	16 vCPU 60 GB	c4.4xlarge	16 vCPU 60 GB
over 500	n1-standard-32	32 vCPU 120 GB	c4.8xlarge	32 vCPU 120 GB

On-Premise or Cloud Service

Use kubeadm for On-Premise
GKE(Google Cloud Kubernetes Engine) for GCP(Google Cloud Platform)
kOps for AWS
AKS(Azure Kubernetes Service) for Azure

Storage

High Performance - SSD Backed Storage
Multiple Concurrent Connections - Network Based Storage
Persistent shared volumes for shared access across multiple PODs
Label nodes with specific disk types
Use Node Selectors to assign applications to nodes with specific disk types

Nodes

Virtual or Physical Machines
Minimum of 4 Node Cluster(Size based on workload)
Master vs Worker Nodes
Linux x86_64 Architecture
Master nodes can host workloads
Best practice is to not host workloads on Master nodes

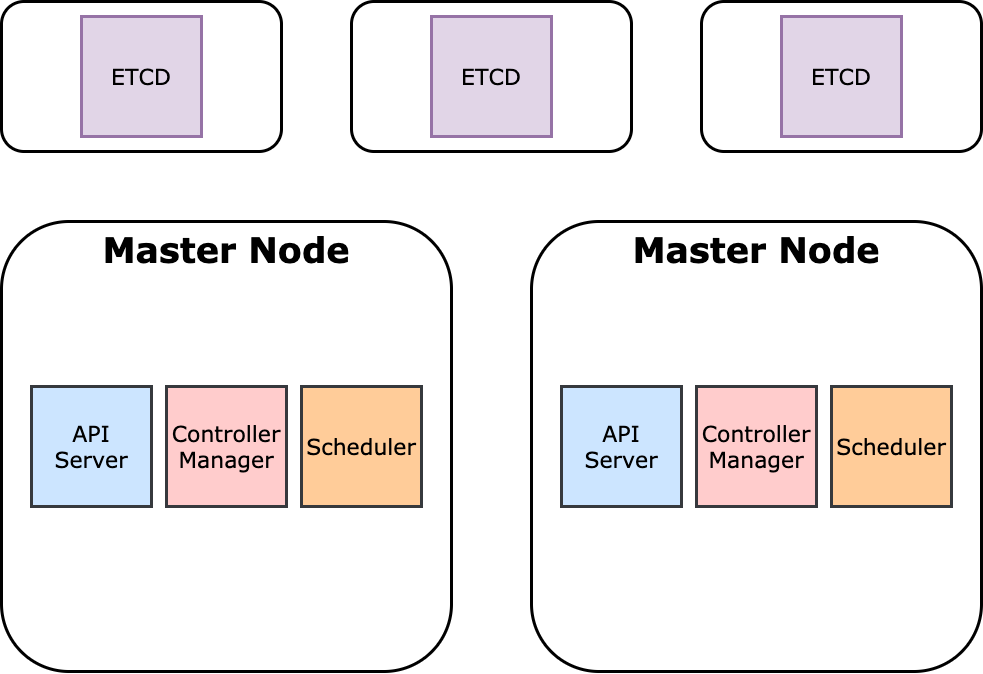

Master Nodes Structure

Structure

The best way is to set 3 ETCDs and 2 Master nodes at least.

Kubernetes Infrastructure

On-Premise vs Cloud Service

On-Premise

On-Premise is to set their own computer room.

Cloud Service

AWS, GCP, and Azure etc.

Our Choice

Our Laptop!

This is for studying Kubernetes. So we just choose our laptop.

Linux vs Windows

Linux

Kubernetes is running under Linux System.

Our Choice

Ubuntu

I’m going to use Ubuntu!

minikube vs Kubeadm

minikube

minikube is local Kubernetes, focusing on making it easy to learn and develop for Kubernetes.

Kubeadm

Kubeadm is a tool built to provide kubeadm init and kubeadm join as best-practice “fast paths” for creating Kubernetes clusters.

Our Choice

Kubeadm

I’m going to build Kubernetes cluster with multiple nodes. So I’m going to use kubeadm.

Turnkey Solutions vs Hosted Solutions(Managed Solutions)

Turnkey Solutions

Turnkey Solution Responsibility

You provision VMs
You configure VMs
You use scripts to deploy cluster
You maintain VMs yourself

Turnkey Solution Products

Hosted Solutions(Managed Solutions)

Hosted Solutions Responsibility

Kubernetes As A Service
Provider provisions VMs
Provider installs Kubernetes
Provider maintains VMs

Hosted Solution Products

GKE(Google Kubernetes Engine)
OpenShift Online
AKS(Azure Kubernetes Service)
AWS EKS(AWS Elastic Kubernetes Service)

Our Choice

VirtualBox

I’m going to build VMs with VirtualBox.

Networking Solution

Network Solution Products

Our Choice

weaveworks

weaveworks is our choice!

HA(High Availability) Kubernetes Cluster

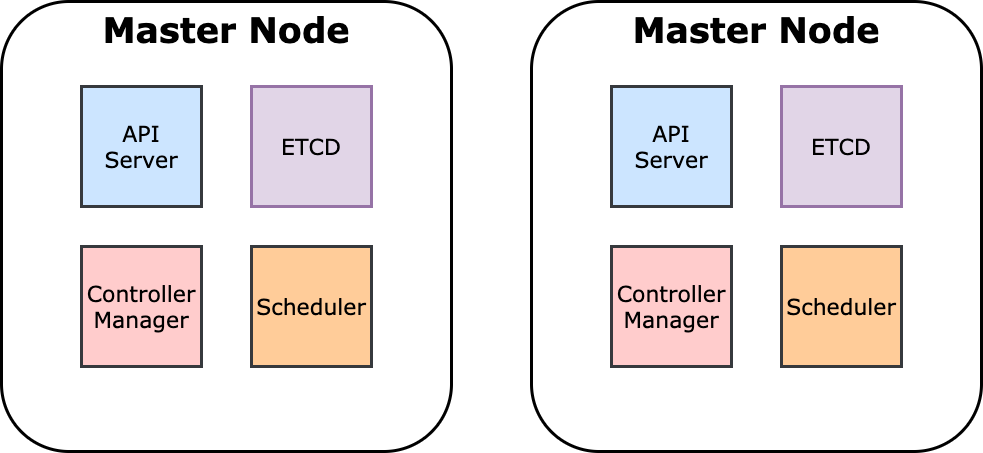

We need 2 master nodes at least for HA. Of course, we need more than 2 worker nodes.

Master Nodes

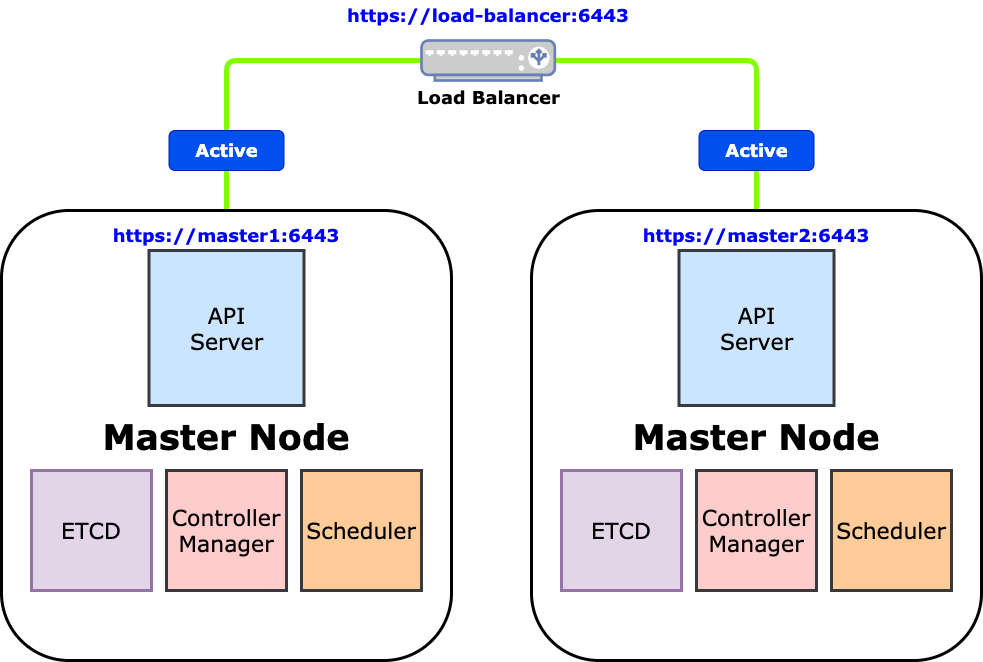

API Server

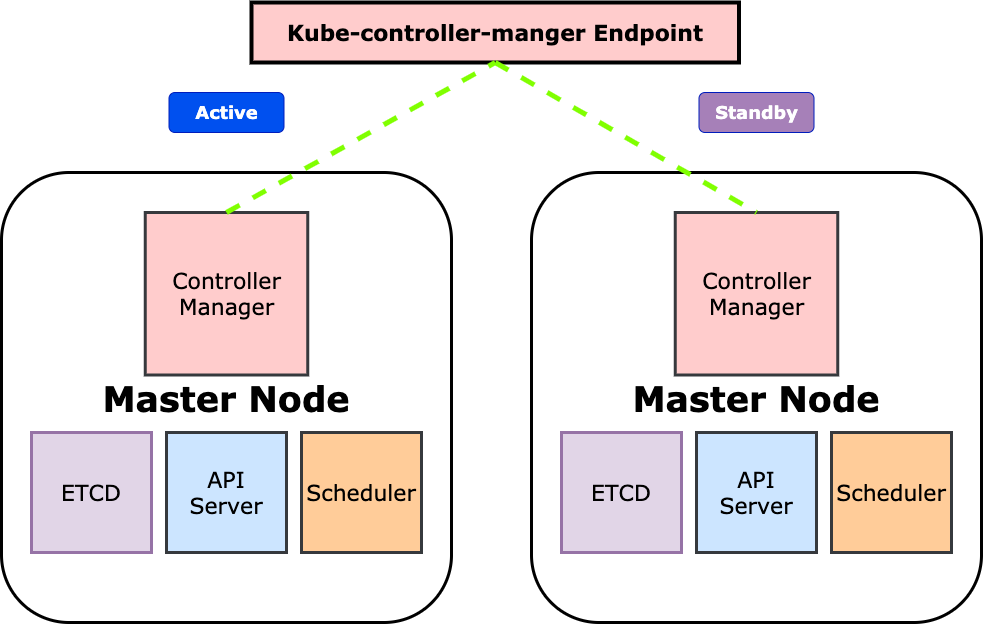

Controller Manager

1
2
3
4
kube-controller-manager --leader-elect true [other options]
                        --leader-elect-lease-duration 15s
                        --leader-elect-renew-deadline 10s
                        --leader-elect-retry-period 2s

/kubernetes-cluster-design/design-contoller-manager.png

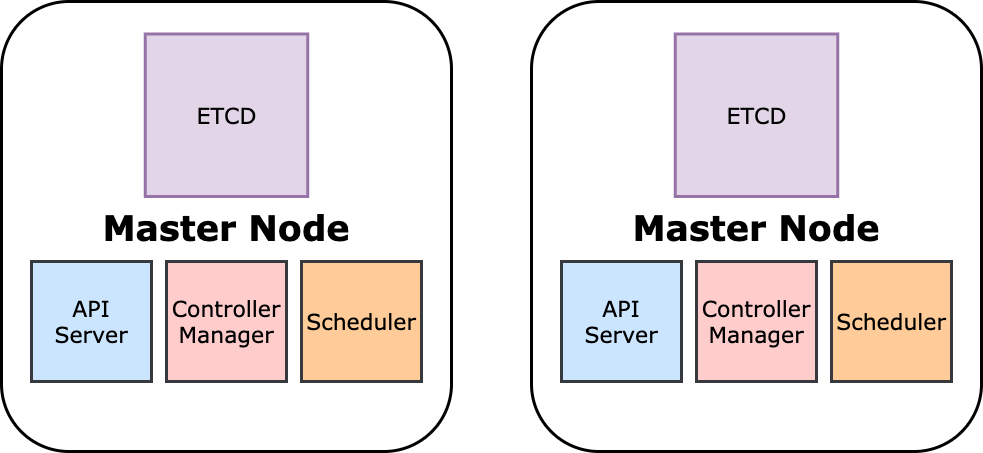

Stacked Topology

Easier to setup
Easier to manage
Fewer servers
Risk during failures

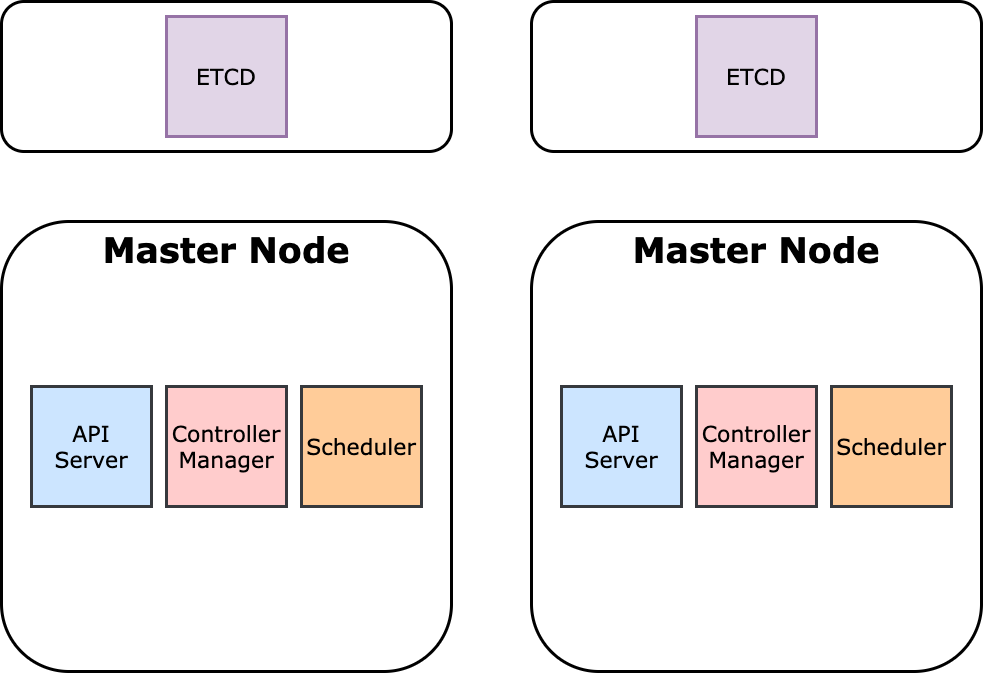

External ETCD Topology

Less risky
Harder to setup
More servers

Config ETCD to `kube-apiserver`

--etcd-servers

Check --etcd-servers

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
spec:
  containers:
    - command:
        - kube-apiserver
        - --advertise-address=192.168.49.2
        - --allow-privileged=true
        - --authorization-mode=Node,RBAC
        - --client-ca-file=/var/lib/minikube/certs/ca.crt
        - --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota
        - --enable-bootstrap-token-auth=true
        - --etcd-cafile=/var/lib/minikube/certs/etcd/ca.crt
        - --etcd-certfile=/var/lib/minikube/certs/apiserver-etcd-client.crt
        - --etcd-keyfile=/var/lib/minikube/certs/apiserver-etcd-client.key
        - --etcd-servers=https://10.240.0.10:2379,https://10.240.0.11:2479
        - --insecure-port=0
        - --kubelet-client-certificate=/var/lib/minikube/certs/apiserver-kubelet-client.crt
        - --kubelet-client-key=/var/lib/minikube/certs/apiserver-kubelet-client.key
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --proxy-client-cert-file=/var/lib/minikube/certs/front-proxy-client.crt
        - --proxy-client-key-file=/var/lib/minikube/certs/front-proxy-client.key
        - --requestheader-allowed-names=front-proxy-client
        - --requestheader-client-ca-file=/var/lib/minikube/certs/front-proxy-ca.crt
        - --requestheader-extra-headers-prefix=X-Remote-Extra-
        - --requestheader-group-headers=X-Remote-Group
        - --requestheader-username-headers=X-Remote-User
        - --secure-port=8443
        - --service-account-issuer=https://kubernetes.default.svc.cluster.local
        - --service-account-key-file=/var/lib/minikube/certs/sa.pub
        - --service-account-signing-key-file=/var/lib/minikube/certs/sa.key
        - --service-cluster-ip-range=10.96.0.0/12
        - --tls-cert-file=/var/lib/minikube/certs/apiserver.crt
        - --tls-private-key-file=/var/lib/minikube/certs/apiserver.key

Our Choice

Our Structure

2 stacked topology master nodes
2 worker nodes
1 ETCD on host

ETCD in HA

Design

ETCD is a distributed, reliable key-value store for the most critical data of a distributed system.

`key-value store`

JSON

1
2
3
4
5
{
  "name": "John Doe",
  "age": 43,
  "location": "New York"
}

YAML

1
2
3
name: "John Doe"
age: 43
location: "New Work"

TOML

1
2
3
name = "John Doe"
age = 43
location = "New York"

`distributed`

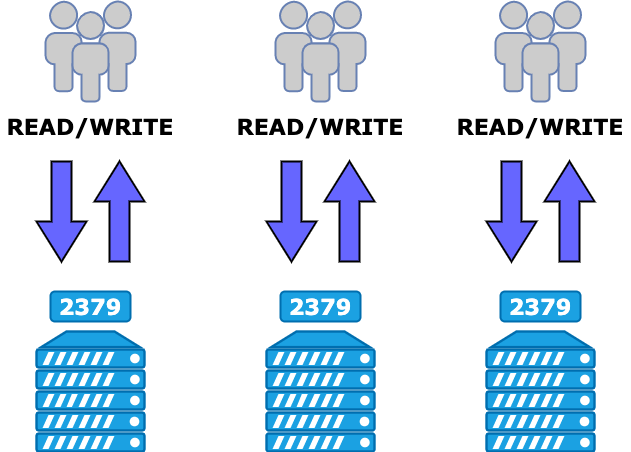

Consistent

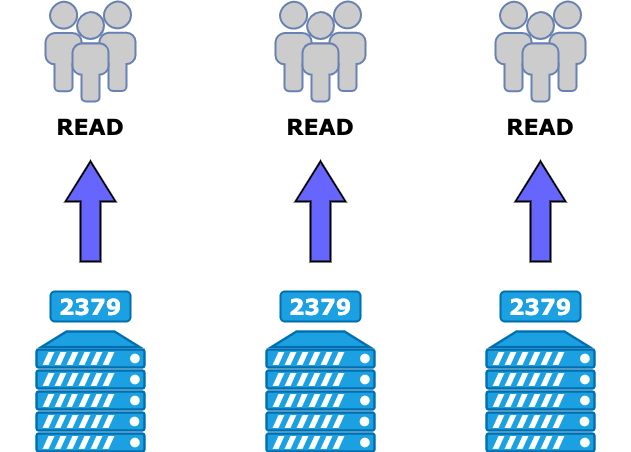

Read

There’s no big problem for consistent reading data.

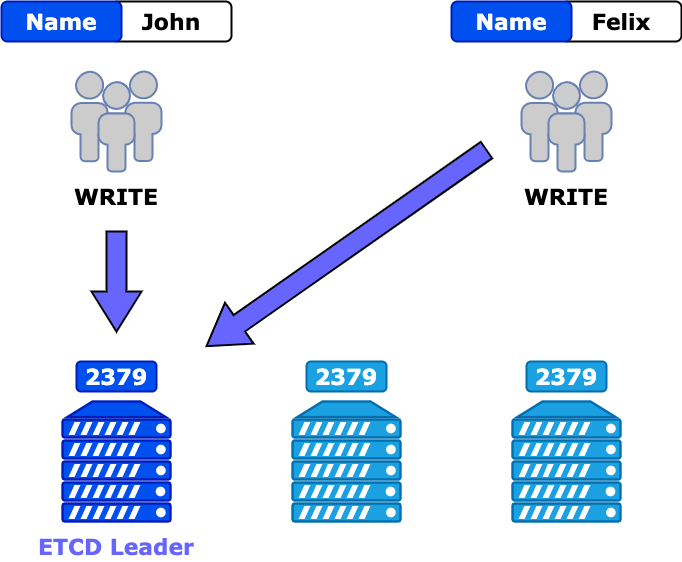

Write

When users write a data that is same key at same time, there’s a problem!
At this time, it is possible to write to only ETCD Leader.

Leader Election - RAFT

Majority

More than half the votes.
N/2+1

Quorum

Minimum number of the votes.
N/2+1

Quorum

Instances	Quorum	Fault Tolerance
1	1	0
2	2	0
3	2	1
4	3	1
5	3	2
6	4	2
7	4	3

Odd or Even?

Managers	Majority	Fault Tolerance
1	1	0
2	2	0
3	2	1
4	3	1
5	3	2
6	4	2
7	4	3

Getting Started

1
2
3
4
5
6
wget -q --https-only
    \ "https://github.com/coreos/etcd/releases/download/v3.3.9/etcd-v3.3.9-linux-amd64.tar.gz"
tar -xvf etcd-v3.3.9-linux-amd64.tar.gz
mv etcd-v3.3.9-linux-amd64/etcd* /usr/local/bin/
mkdir -p /etc/etcd /var/lib/etcd
cp ca.pem kubernetes-key.pem kubernetes.pem /etc/etcd/

`etcd.service`

--initial-cluster

--initial-cluster peer-1=https://${PEER1_IP}:2380,peer-2=https://${PEER2_IP}:2380.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
ExecStart=/usr/local/bin/etcd \\
  --name ${ETCD_NAME} \\
  --cert-file=/etc/etcd/kubernetes.pem \\
  --key-file=/etc/etcd/kubernetes-key.pem \\
  --peer-cert-file=/etc/etcd/kubernetes.pem \\
  --peer-key-file=/etc/etcd/kubernetes-key.pem \\
  --trusted-ca-file=/etc/etcd/ca.pem \\
  --peer-trusted-ca-file=/etc/etcd/ca.pem \\
  --peer-client-cert-auth \\
  --client-cert-auth \\
  --initial-advertise-peer-urls https://${INTERNAL_IP}:2380 \\
  --listen-peer-urls https://${INTERNAL_IP}:2380 \\
  --listen-client-urls https://${INTERNAL_IP}:2379,https://127.0.0.1:2379 \\
  --advertise-client-urls https://${INTERNAL_IP}:2379 \\
  --initial-cluster-token etcd-cluster-0 \\
  --initial-cluster peer-1=https://${PEER1_IP}:2380,peer-2=https://${PEER2_IP}:2380 \\
  --initial-cluster-state new \\
  --data-dir=/var/lib/etcd

`etcdctl`

Set ETCD API Version

1
export ETCDCTL_API=3

Data Control Commands

Put

1
etcdctl put name john

Get

1
etcdctl get name

1
2
name
john

Get List

1
etcdctl get --prefix --keys-only

Our Design

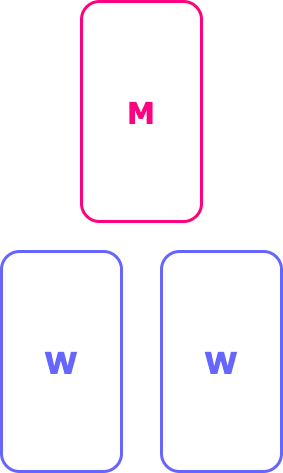

Design

I’m going to set below design.
