Kubernetes Network Security

CozyFex included in kubernetes k8s orchestration
   510 words   3 minutes

Network Policy Commands

Network Policy List

1

kubectl get networkplicy

Network Policy Detail

1

kubectl describe networkpolicy <networkpolicy-name>

YAML

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: internal-policy
spec:
  podSelector:
    matchLabels:
      name: internal
  policyTypes:
    - Egress
  egress:
    - to:
        - podSelector:
            matchLabels:
              name: payroll
      ports:
        - protocol: TCP
          port: 8080
    - to:
        - podSelector:
            matchLabels:
              name: mysql
      ports:
        - protocol: TCP
          port: 3306

System Diagram

/kubernetes-network-security/kubernetes-network-security.png

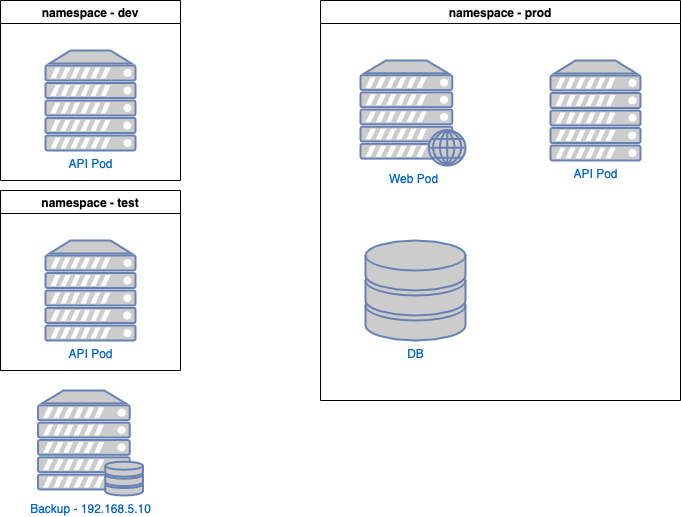

Network Policy

/kubernetes-network-security/kubernetes-network-security-policy-sample.png

Ingress podSelector

/kubernetes-network-security/kubernetes-network-security-pod-selector.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
  ingress:
    - from:
        - podSelector:
            matchLabels:
              name: api-pod
      ports:
        - protocol: TCP
          port: 3306

Ingress namespaceSelector

/kubernetes-network-security/kubernetes-network-security-namespace-selector.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
  ingress:
    - from:
        - namespaceSelector:
            matchLabels:
              name: prod
      ports:
        - protocol: TCP
          port: 3306

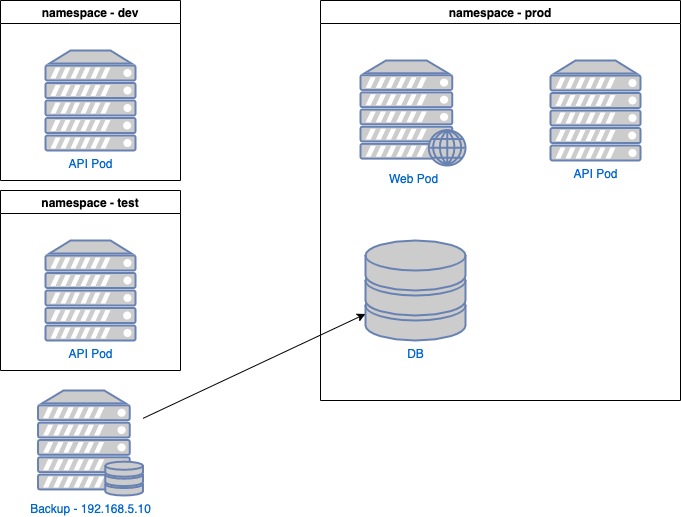

Ingress ipBlock

/kubernetes-network-security/kubernetes-network-security-ip-block.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
  ingress:
    - from:
        - ipBlock:
            cidr: 192.168.5.10/32
      ports:
        - protocol: TCP
          port: 3306

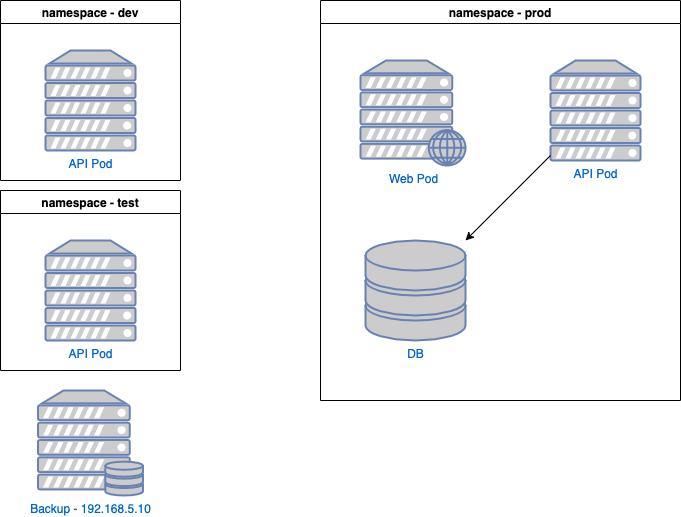

Ingress podSelector AND namespaceSelector

/kubernetes-network-security/kubernetes-network-security-pod-and-namespace.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
  ingress:
    - from:
        - podSelector:
            matchLabels:
              name: api-pod
          namespaceSelector:
            matchLabels:
              name: prod
      ports:
        - protocol: TCP
          port: 3306

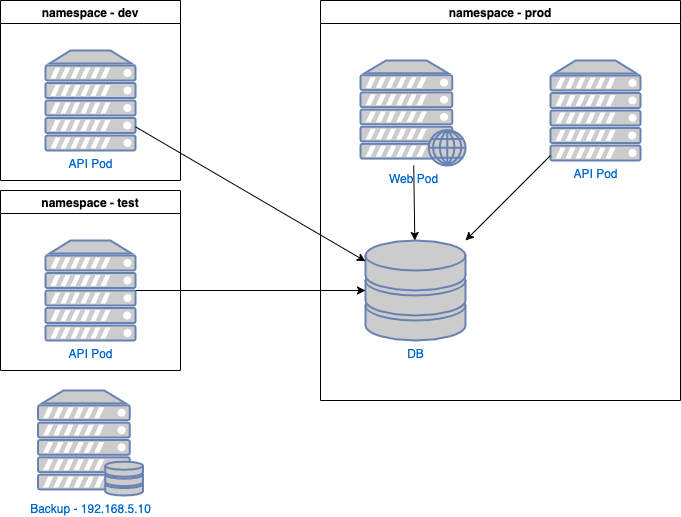

Ingress podSelector OR namespaceSelector

/kubernetes-network-security/kubernetes-network-security-pod-or-namespace.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
  ingress:
    - from:
        - podSelector:
            matchLabels:
              name: api-pod
        - namespaceSelector:
            matchLabels:
              name: prod
      ports:
        - protocol: TCP
          port: 3306

Ingress (podSelector AND namespaceSelector) OR ipBlock

/kubernetes-network-security/kubernetes-network-security-pod-and-namespace-or-ipblock.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
  ingress:
    - from:
        - podSelector:
            matchLabels:
              name: api-pod
          namespaceSelector:
            matchLabels:
              name: prod
        - ipBlock:
            cidr: 192.168.5.10/32
      ports:
        - protocol: TCP
          port: 3306

Ingress (podSelector AND namespaceSelector) OR ipBlock AND Egress ipBlock

/kubernetes-network-security/kubernetes-network-security-egress-ip-block.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: db-policy
spec:
  podSelector:
    matchLabels:
      role: db
  policyTypes:
    - Ingress
    - Egress
  ingress:
    - from:
        - podSelector:
            matchLabels:
              name: api-pod
          namespaceSelector:
            matchLabels:
              name: prod
        - ipBlock:
            cidr: 192.168.5.10/32
      ports:
        - protocol: TCP
          port: 3306
  egress:
    - to:
        - ipBlock:
            cidr: 192.168.5.10/32
      ports:
        - protocol: TCP
          port: 80
