Network Routing

CozyFex included in kubernetes k8s orchestration network

2021-05-29 226 words 2 minutes

Contents

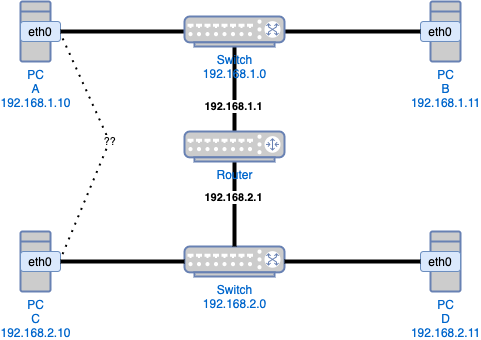

Routing Diagram

How to Connect Between A and C?

Network

There are two switches as 192.168.1.0 and 192.168.2.0.
192.168.1.0 and 192.168.2.0 are different network environments.
That means A and C are also different networks.
At this moment, we need a router to connect between the different networks.

Gateway

There’s no way to connect between A and C directly.
So we need a door to connect between them.
In this case, we have a router.
We call it Gateway.

Default Gateway

Now, we know what is the gateway.
You can set a gateway as system default.
Default Gateway means the system use a gateway as default.

Scenario

Set Route A

Add Route

1
ip route add 192.168.2.0/24 via 192.168.1.1

Check Route List

1
2
ip route
ip route list

Set Route C

Add Route

1
ip route add 192.168.1.0/24 via 192.168.2.1

Check Route List

1
2
ip route
ip route list

Set Default Gateway

In PC A

1
ip route add default via 192.168.1.1

In PC B

1
ip route add default via 192.168.2.1

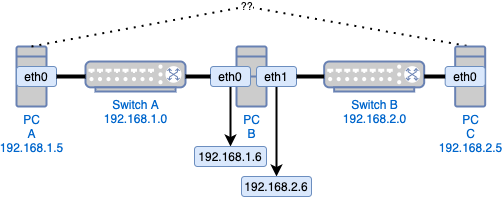

PC as a Route

Diagram

How to Connect Between PC A and PC C

Ping PC A to PC C

_{PC A}

1
ping 192.168.2.5

1
Connect: Network is unreachable

Set Route

_{PC A}

1
ip route add 192.168.2.0/24 via 192.168.1.6

_{PC C}

1
ip route add 192.168.1.0/24 via 192.168.2.6
