Network Switching

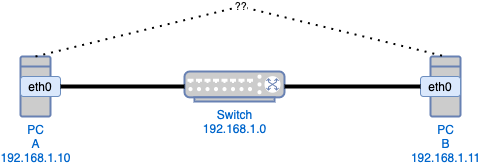

Switching Diagram

How to Connect A and B?

Scenario

Setting PC A

Check Ethernet List

1

ip link

Assign IP Address to eth0 that is connected with the Switch

1

ip addr add 192.168.1.10/24 dev eth0

Setting PC B

Check Ethernet List

1

ip link

Assign IP Address to eth0 that is connected with the Switch

1

ip addr add 192.168.1.11/24 dev eth0

Ping Between A and B

From A

1

ping 192.168.1.11

From B

1

ping 192.168.1.10
